FE(Z6) Type CAPT-LOCKS

Range of product: DIN:(FE(Z6)) Metric size product (Apply to DIN market) FE(Z6) Type CAPT-LOCKS

Product Details

Parameters Introduction：

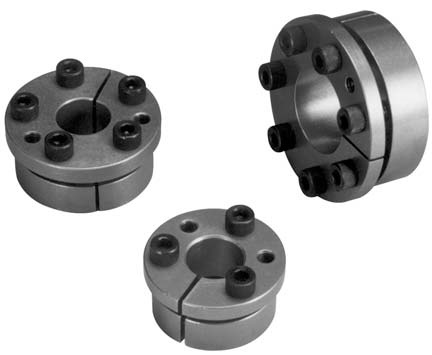

FE CAPT-LOCKS are composed of two inside & outside rings with taper surface and the corresponding

tightening bolts.They have the characteristics of simple structure,easy on & easy off and lower costs.

Under the pressure of tightening bolts, the inner and outer rings move oppositively along the inner and

outer taper surfaces. The pressure and friction produced make the joint between hub and shaft works.

The installation of FE CAPT-LOCKS is very simple. They can be self-centered installed and their concentricity

is very high. The machining process is very simple. The requirement to hub's bore diameter and shaft

diameter is not very strict, so the time for machining process and cost can be saved.

Product range：

Standards

Series Type

SizeRange

DIN

FE(Z6)

CL14x55FE to CL50x80FE
