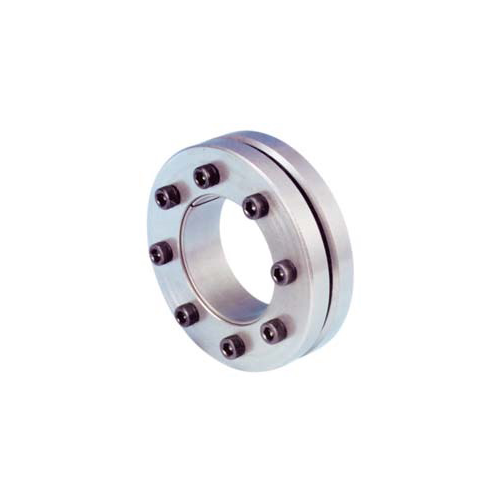

SD Type CAPT-LOCKS

Range of product: ANSI/DIN:(SD) Inch size product (Apply to ANSI market) Metric size product (Apply to DIN market) SD Type CAPT-LOCKS

Product Details

Parameters Introduction：

SD NSPT-LOCKS is best suitable for the joint connected by hubs and shafts with thin walls. They can fit

with large shaft diameters and can transmit large torques.

SD NSPT-LOCKS is formed by one inner circle, two taper tightening rings and matching tightening bolts.

They have the characteristics Of structure simplicity, easy installation and good durability.

The installation of SD NSPT-LOCKS is as followed:

By tightening the bolts, two tightening rings will press the inner circle with outer taper surface, making it

create the radial pressures and frictional forces to connect the hub and the shaft.

Product range：

Standards

Series Type

SizeRange

ANSI/DIN

SD

CL24x50SD至CL330x485SD

ANSI Catalog:ANSI SD Type CAPT-LOCKS.pdf
DIN Catalog:DIN SD Type CAPT-LOCKS.pdf
